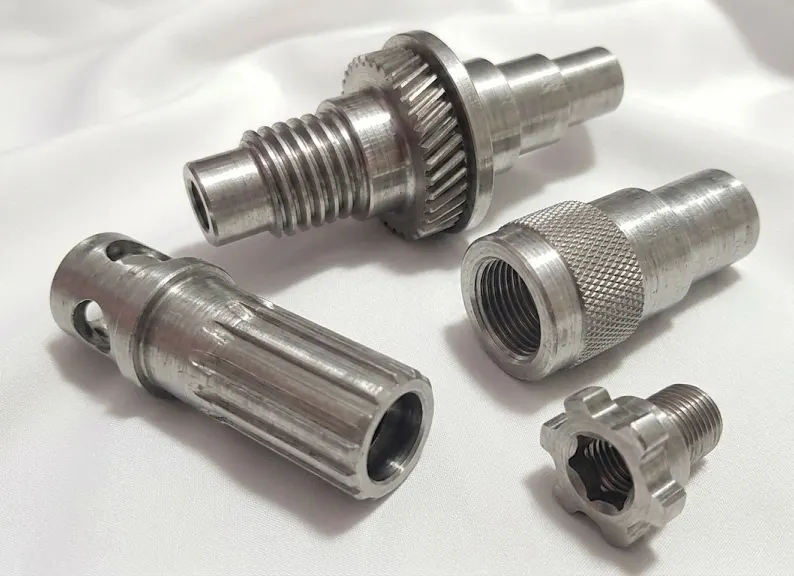

CNC turning for rotational components
Shafts, bushes, sleeves and flanges need the right relationship between diameters, bores and shoulders. We review those functional features with your material and quantity, then plan turning and any related operations.
- Ace Micromatic working reference
- Ø150 × 350 mmDiameter × length supplied by the Suguna team; chucking and support reviewed per part.
- Jyoti DX 200 series
- Ø320 mmTeam-reported working diameter; variant and usable length confirmed with the drawing.
- Functional features
- Fits · threads · runoutDefine mating diameters, datum relationships and finished-surface requirements.
Turning equipment references
Working figures supplied by the Suguna team. Send overall dimensions, bore and support requirements to confirm part suitability.
| Turning reference | Reported working capacity | Confirm with the drawing |
|---|---|---|
| Ace Micromatic | Ø150 × 350 mm (diameter × length) | Chucking, unsupported length and exact model |
| Jyoti DX 200 series | Ø320 mm working diameter | Installed variant, working length and support |
Fits, bores and threads
Identify mating diameters, thread standards, grooves, shoulders, surface finish and concentricity or runout requirements. Include the datum scheme and any dimensions that apply after treatment.
Workholding and additional operations
Send overall diameter and length, bore depth, stock condition and any slender or thin-walled sections. Chucking, support and tool access determine the workable route. Flats, cross-holes, slots, engraving and finishing can be reviewed in the same enquiry.
Samples and repeat batches
A sample or first article can be planned before a larger quantity. Agree the drawing revision, inspection characteristics and acceptance method so repeat orders refer to the same approved requirement.
What to send
Include a dimensioned drawing, model if available, material grade, quantity, critical fits, finish and required delivery date. Request dimensional, material or process records during quotation rather than after production.
Manufactured in Hyderabad. Planned for your destination.
Send turning enquiries from Mumbai, Ahmedabad, Delhi NCR or elsewhere in India and overseas. Include the drawing, grade, quantity, critical fits and delivery postcode so the component and dispatch route can be reviewed.
Ready for a technical review?
Diameter / length · drawing · grade · quantity · fits / threads · surface finish · inspection
